INSTALLATION OF ORACLE 11G CLIENT FOR RAC
Installing Linux Operating system
========================

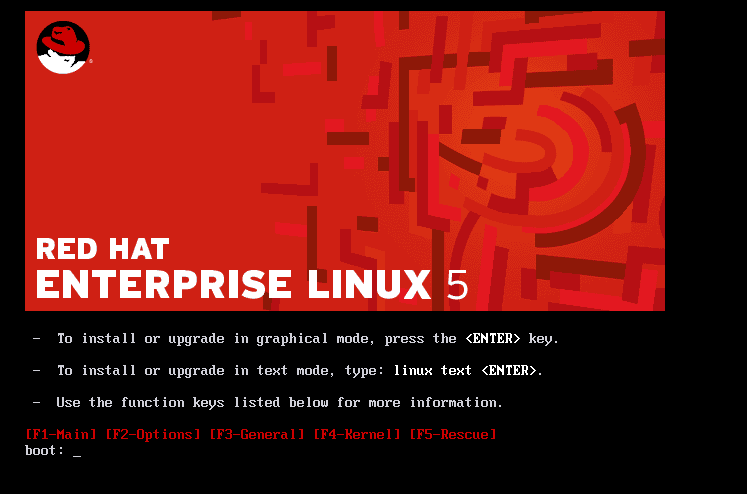

1. Press Enter

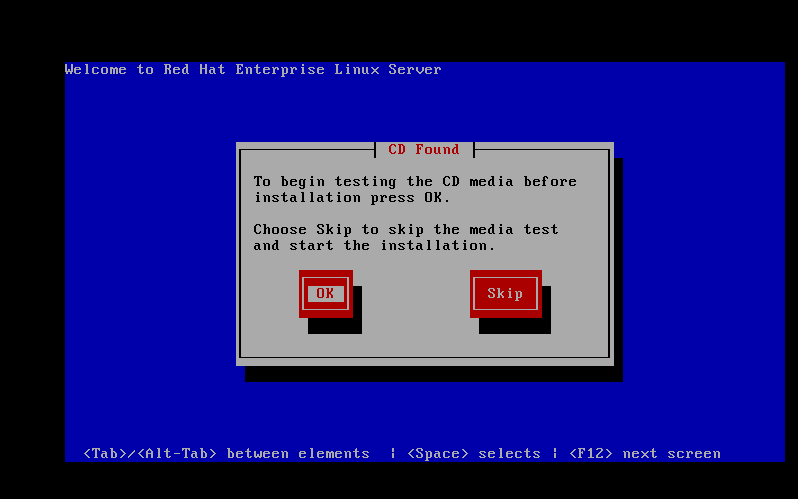

2. Move to skip-enter

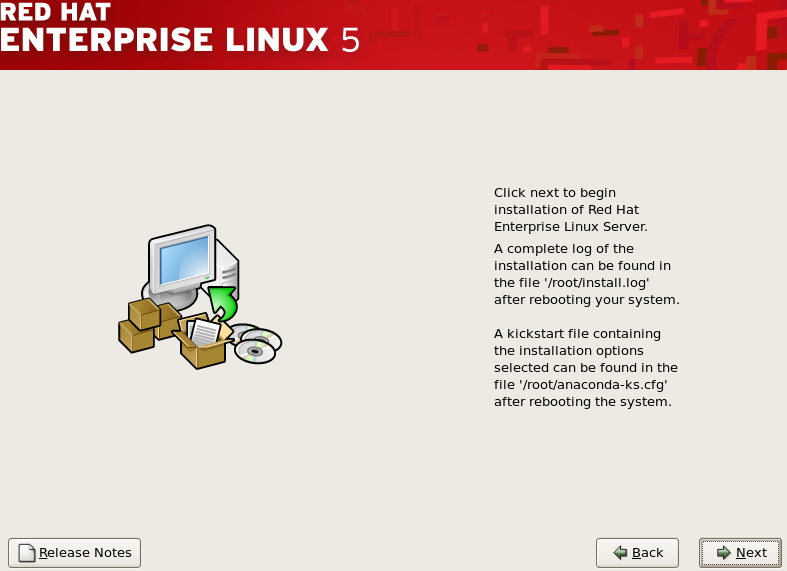

3. Click on Next Button
\

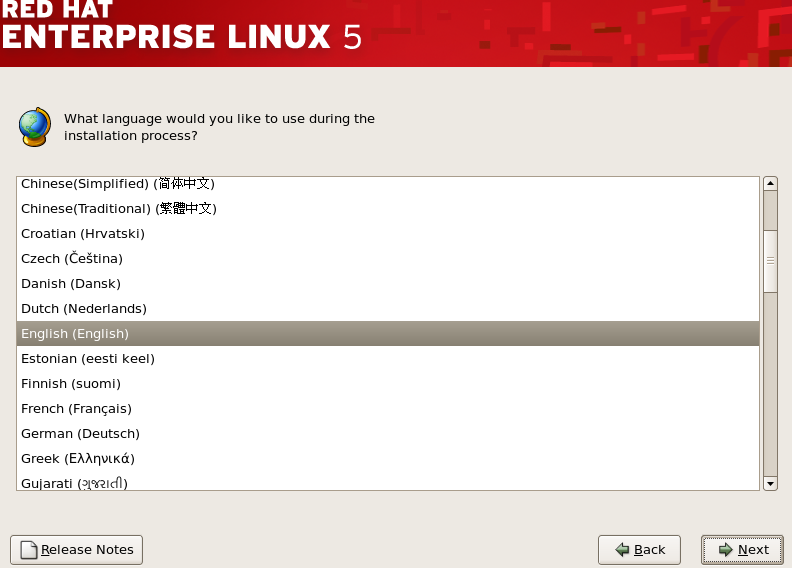

4. Select Language then Next button

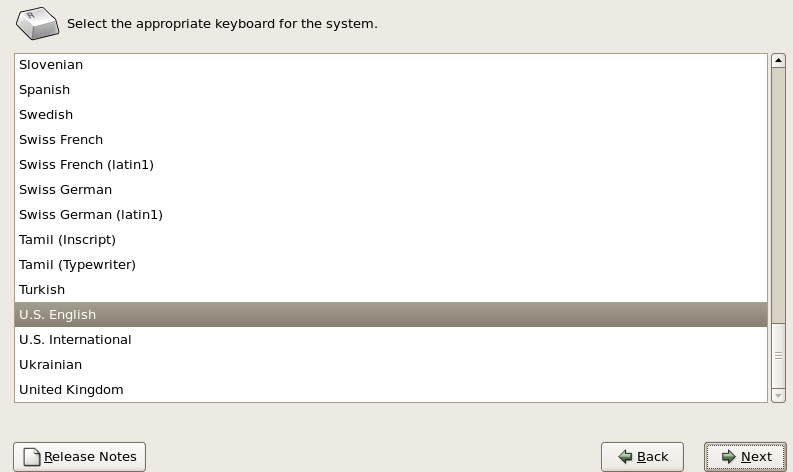

5. Click the keyboard language--Next

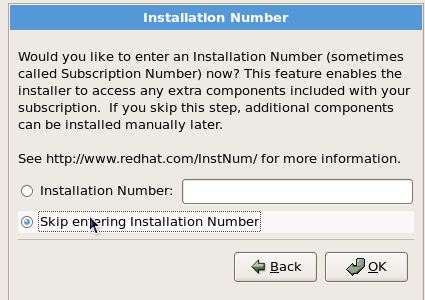

6. Click on Skip entering Installation Number

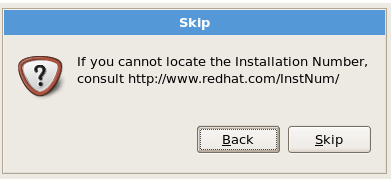

7. Click on Skip Button
9. Click on Yes Button

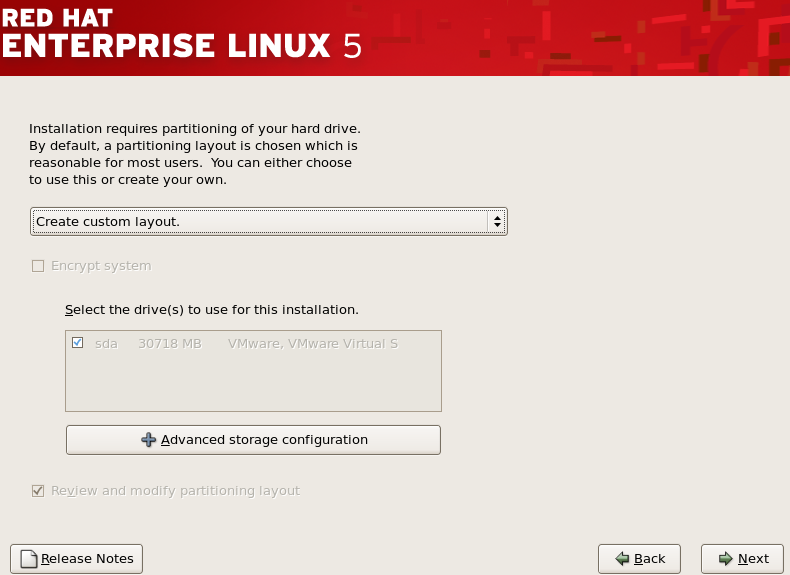

10. Select create custom layout from drop down list and click on next button
11. make the following directory and click on Next button

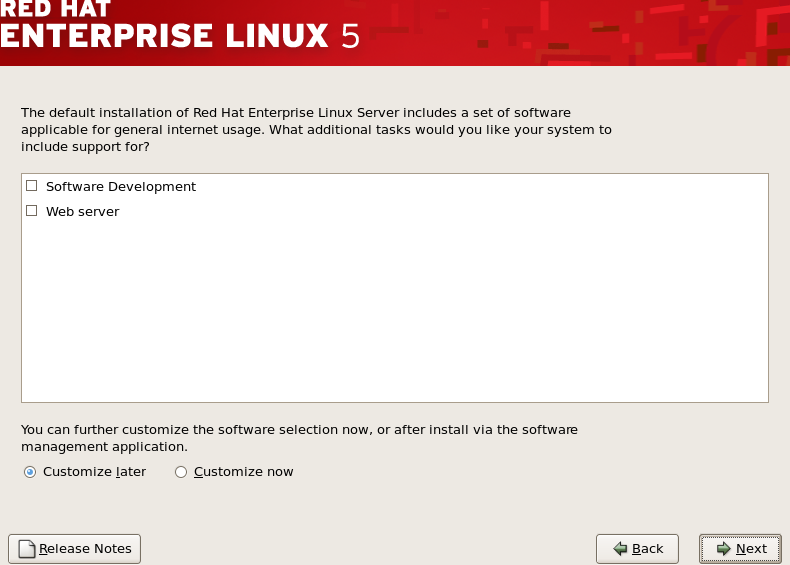

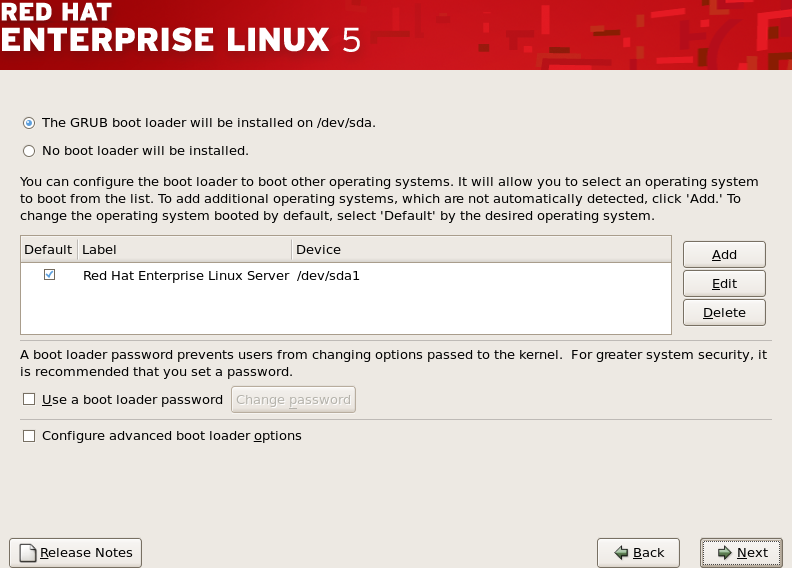

12. Click on Next button
13. Click on Next buton

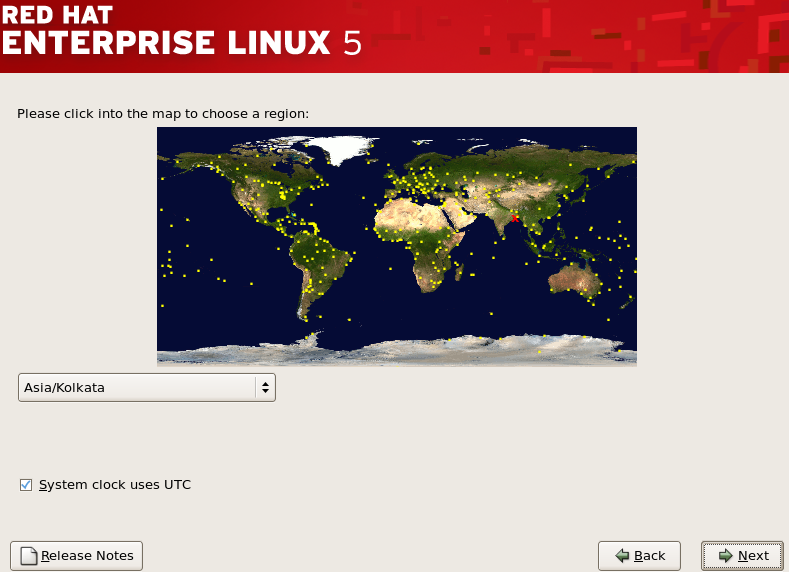

14. select the time zone and click on next button
15. Enter the root password
16. Click on Next button.
17. Click on Next button
18.> Installation has been started.
19. Click on Reboot button

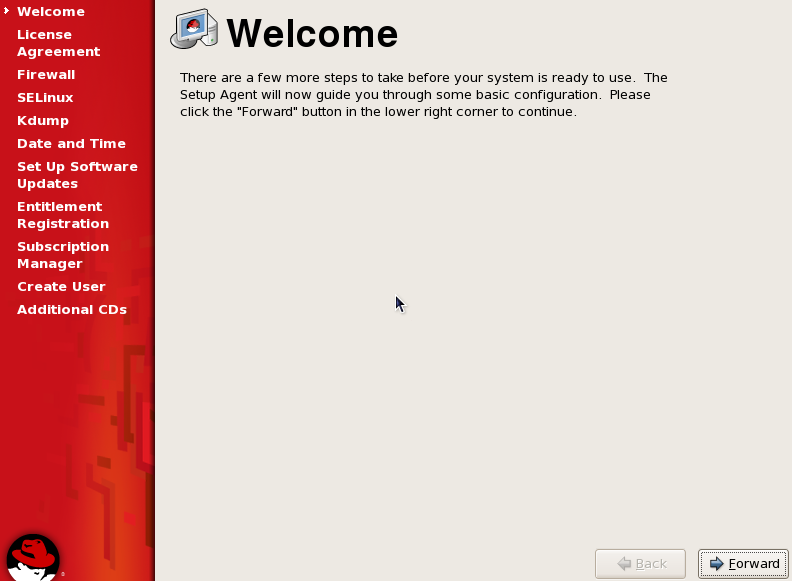

20. Click on Forward.
21. Accept the license and click on Next button.

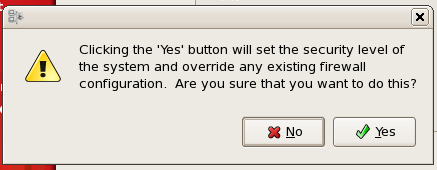

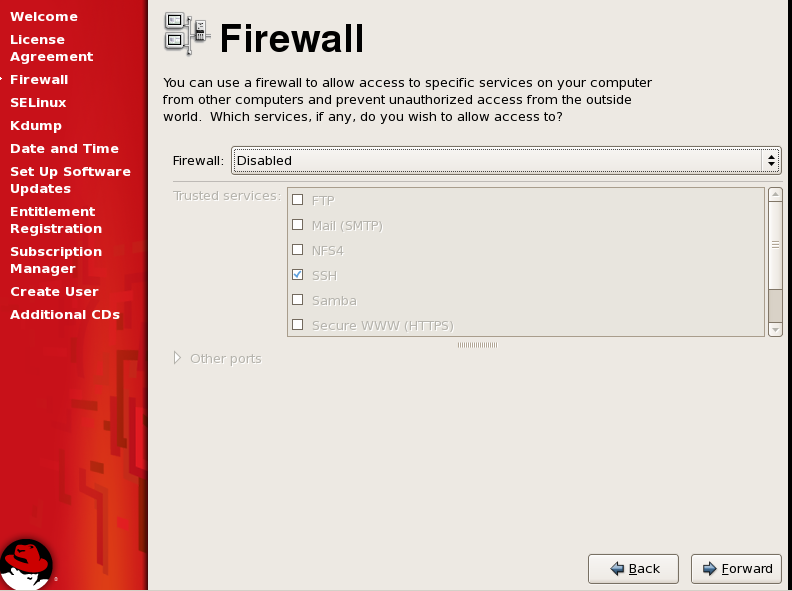

22. Disabled the firewall and click on Next button

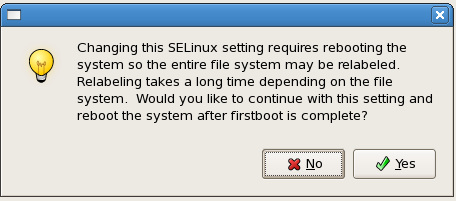

23. Disabled the setting and click on forward button.
25.> Click on next button
26.> Set date and Time

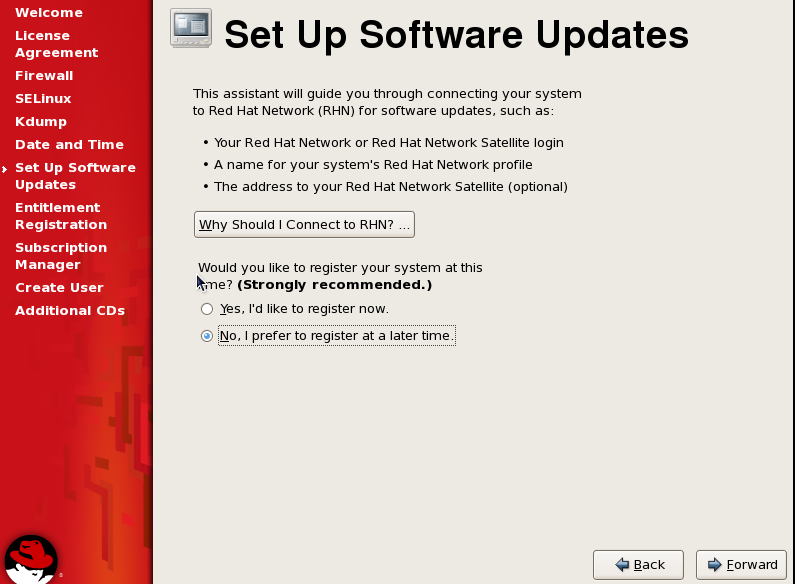

27.> Click on No, I prefer to register at a later time

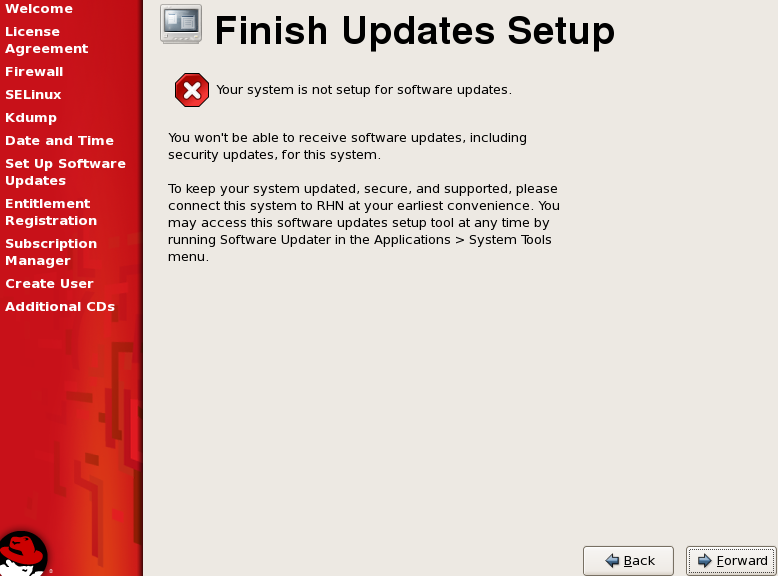

28. click on forward button

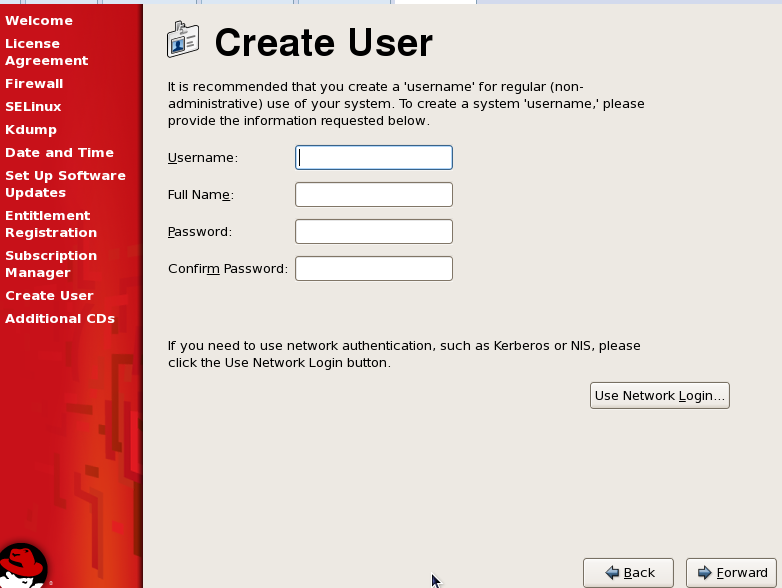

29. Click on foward button

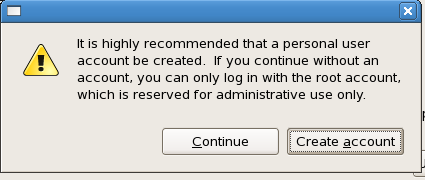

click on continue button

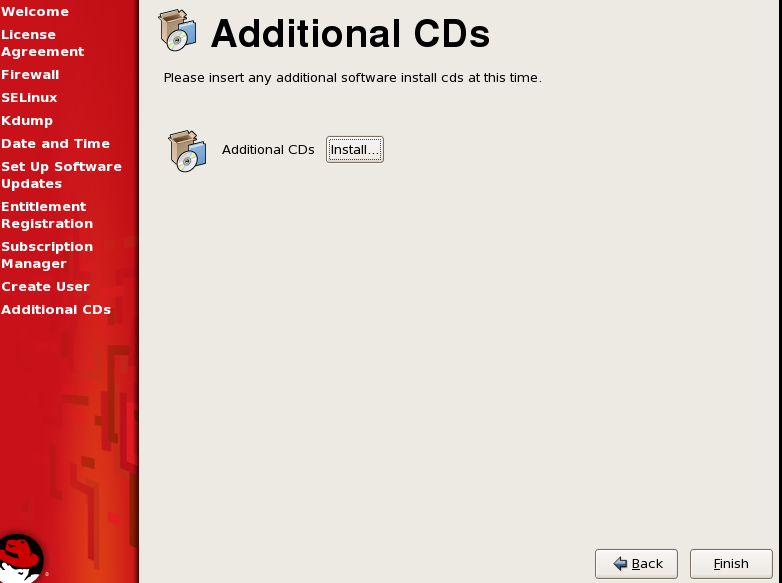

30. click on finish button
31. Configure tools for copy paste between desktop to vmware and vmware to desktop.
click on VM--> Install vmware tools-->Extract the Vmarware tool

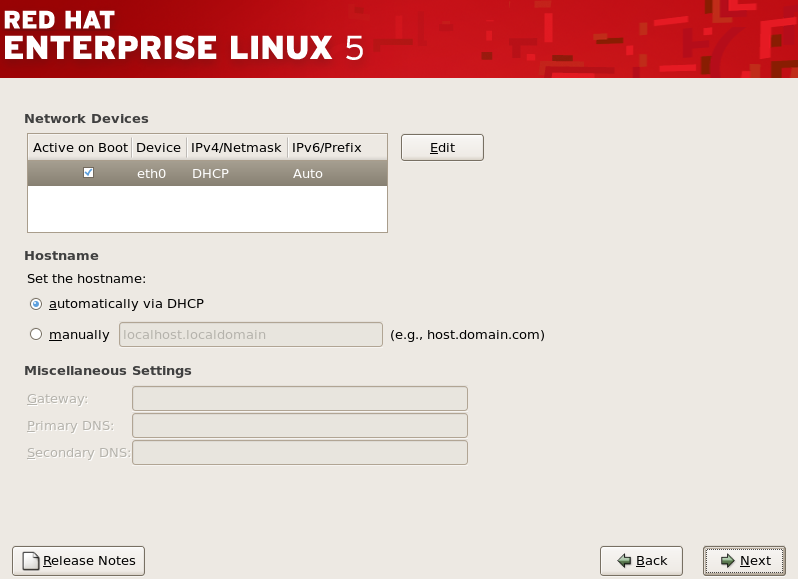

32. Make the IP configuration.
$ neat

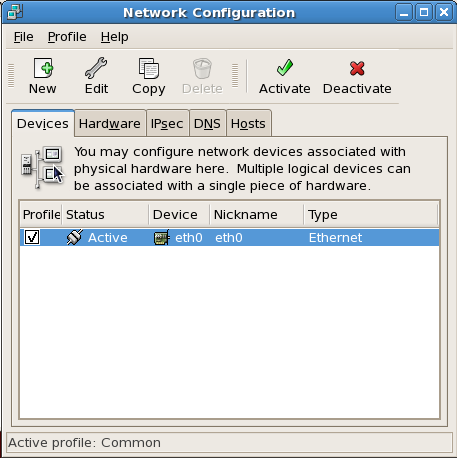

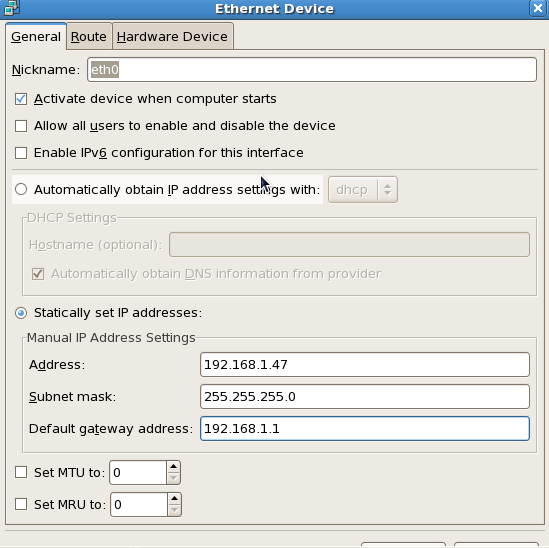

33. First click on Deactivate button then click on EDIT button and enter the IP address as mentioned below.

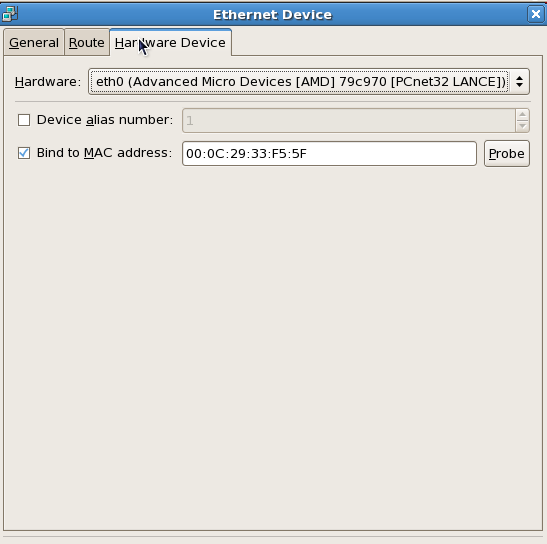

34. click on PROBE button and then apply
35. Now activite this by click on Activate button and click on file -->save

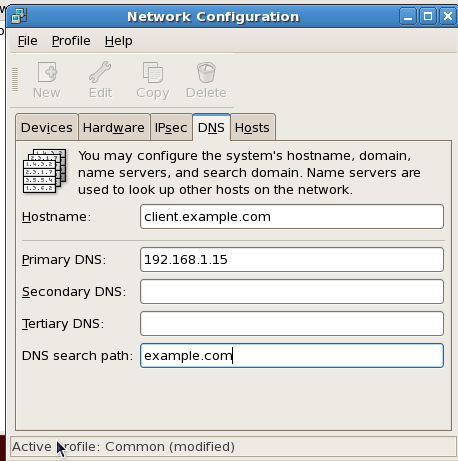

36. click on DNS Tab and enter the hostname. Primary DBN and DNS search path
37. click on Hosts tab , make the following entries and then file-->save
38. Check all the connectivity by nslookup and ping method between Client host to server hostname
40. Reboot the host.
41. Now sync the time of Client with DNS server .-- Optional if you configure DNS server
NTP settings
In /etc/ntp.conf add the following line
vi /etc/ntp.conf
#server ....
#server ....
#server ....
server 192.168.1.15 //DNS IP
vi /etc/sysconfig/ntpd
Replace Options="-u........."
with Options="-x -u......."

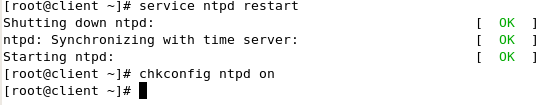

42. Run the following command to sync client host time with DNS server.
$ checkconfig ntpd on
$ service ntpd restart
Installation of Oracle client
1. Create Group and User
[root@client /]# groupadd oinstall
[root@client /]# groupadd dba
[root@client /]# useradd -g oinstall -G dba oracle
[root@client /]# passwd oracle
Changing password for user oracle.
New UNIX password:
BAD PASSWORD: it is based on a dictionary word
Retype new UNIX password:
passwd: all authentication tokens updated successfully.
2. Create Directory
[root@client /]# mkdir -p /u01/app/oracle/
[root@client /]# chown -R oracle:oinstall /u01/app/oracle
[root@client /]#

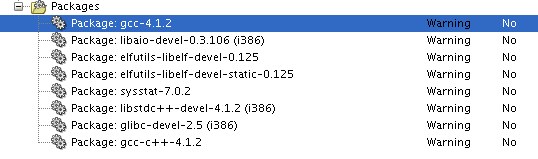

3.Install these package
[root@client ~]# yum install binutils-2.* compat-libstdc++-33* elfutils-libelf-0.* elfutils-libelf-devel-* gcc-4.* gcc-c++-4.* glibc-2.* glibc-common-2.* glibc-devel-2.* glibc-headers-2.* ksh-2* libaio-0.* libaio-devel-0.* libgcc-4.* libstdc++-4.* libstdc++-devel-4.* make-3.* sysstat-7.* unixODBC-2.* unixODBC-devel-2.*
Loaded plugins: katello, product-id, security, subscription-manager
Updating certificate-based repositories.
Unable to read consumer identity
Setting up Install Process
Package binutils-2.17.50.0.6-20.el5.i386 already installed and latest version
Package compat-libstdc++-33-3.2.3-61.i386 already installed and latest version
Package elfutils-libelf-0.137-3.el5.i386 already installed and latest version
Package glibc-2.5-81.i686 already installed and latest version
Package glibc-common-2.5-81.i386 already installed and latest version
Package ksh-20100621-5.el5.i386 already installed and latest version
Package libaio-0.3.106-5.i386 already installed and latest version
Package libgcc-4.1.2-52.el5.i386 already installed and latest version
Package libstdc++-4.1.2-52.el5.i386 already installed and latest version
Package 1:make-3.81-3.el5.i386 already installed and latest version
Resolving Dependencies
--> Running transaction check
---> Package elfutils-libelf-devel.i386 0:0.137-3.el5 set to be updated
---> Package elfutils-libelf-devel-static.i386 0:0.137-3.el5 set to be updated
---> Package gcc.i386 0:4.1.2-52.el5 set to be updated
---> Package gcc-c++.i386 0:4.1.2-52.el5 set to be updated
---> Package glibc-devel.i386 0:2.5-81 set to be updated
---> Package glibc-headers.i386 0:2.5-81 set to be updated
--> Processing Dependency: kernel-headers >= 2.2.1 for package: glibc-headers
--> Processing Dependency: kernel-headers for package: glibc-headers
---> Package libaio-devel.i386 0:0.3.106-5 set to be updated
---> Package libstdc++-devel.i386 0:4.1.2-52.el5 set to be updated
Server/filelists | 2.4 MB 00:00
---> Package sysstat.i386 0:7.0.2-11.el5 set to be updated
---> Package unixODBC.i386 0:2.2.11-10.el5 set to be updated
--> Processing Dependency: unixODBC-libs = 2.2.11-10.el5 for package: unixODBC
--> Processing Dependency: libodbcinst.so.1 for package: unixODBC
--> Processing Dependency: libodbc.so.1 for package: unixODBC
---> Package unixODBC-devel.i386 0:2.2.11-10.el5 set to be updated
--> Running transaction check
---> Package kernel-headers.i386 0:2.6.18-308.el5 set to be updated
---> Package unixODBC-libs.i386 0:2.2.11-10.el5 set to be updated
--> Finished Dependency Resolution
Dependencies Resolved
========================================================================================================================================================================
Package Arch Version Repository Size
========================================================================================================================================================================
Installing:
elfutils-libelf-devel i386 0.137-3.el5 Server 25 k
elfutils-libelf-devel-static i386 0.137-3.el5 Server 66 k
gcc i386 4.1.2-52.el5 Server 5.2 M
gcc-c++ i386 4.1.2-52.el5 Server 3.4 M
glibc-devel i386 2.5-81 Server 2.0 M
glibc-headers i386 2.5-81 Server 606 k
libaio-devel i386 0.3.106-5 Server 12 k
libstdc++-devel i386 4.1.2-52.el5 Server 2.8 M
sysstat i386 7.0.2-11.el5 Server 182 k
unixODBC i386 2.2.11-10.el5 Server 290 k
unixODBC-devel i386 2.2.11-10.el5 Server 739 k
Installing for dependencies:
kernel-headers i386 2.6.18-308.el5 Server 1.3 M
unixODBC-libs i386 2.2.11-10.el5 Server 551 k
Transaction Summary
========================================================================================================================================================================
Install 13 Package(s)
Upgrade 0 Package(s)
Total download size: 17 M
Is this ok [y/N]: y
Downloading Packages:
(1/13): libstdc++-devel-4.1.2-52.el5.i386.rpm | 2.8 MB 00:00
(2/13): kernel-headers-2.6.18-308.el5.i386.rpm | 1.3 MB 00:00
(3/13): sysstat-7.0.2-11.el5.i386.rpm | 182 kB 00:00
(4/13): gcc-4.1.2-52.el5.i386.rpm | 5.2 MB 00:00
(5/13): elfutils-libelf-devel-static-0.137-3.el5.i386.rpm | 66 kB 00:00
(6/13): unixODBC-libs-2.2.11-10.el5.i386.rpm | 551 kB 00:00
(7/13): unixODBC-devel-2.2.11-10.el5.i386.rpm | 739 kB 00:00
(8/13): elfutils-libelf-devel-0.137-3.el5.i386.rpm | 25 kB 00:00
(9/13): gcc-c++-4.1.2-52.el5.i386.rpm | 3.4 MB 00:00
(10/13): glibc-devel-2.5-81.i386.rpm | 2.0 MB 00:00
(11/13): glibc-headers-2.5-81.i386.rpm | 606 kB 00:00
(12/13): unixODBC-2.2.11-10.el5.i386.rpm | 290 kB 00:00
(13/13): libaio-devel-0.3.106-5.i386.rpm | 12 kB 00:00
------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Total 4.0 MB/s | 17 MB 00:04
Running rpm_check_debug
Running Transaction Test
Finished Transaction Test
Transaction Test Succeeded
Running Transaction
Installing : kernel-headers 1/13
Installing : glibc-headers 2/13
Installing : glibc-devel 3/13
Installing : libstdc++-devel 4/13
Installing : unixODBC-libs 5/13
Installing : unixODBC 6/13
Installing : gcc 7/13
Installing : gcc-c++ 8/13
Installing : sysstat 9/13
Installing : unixODBC-devel 10/13
Installing : libaio-devel 11/13
Installing : elfutils-libelf-devel 12/13
Installing : elfutils-libelf-devel-static 13/13
Server/productid | 1.7 kB 00:00
Installed products updated.
Installed:
elfutils-libelf-devel.i386 0:0.137-3.el5 elfutils-libelf-devel-static.i386 0:0.137-3.el5 gcc.i386 0:4.1.2-52.el5 gcc-c++.i386 0:4.1.2-52.el5
glibc-devel.i386 0:2.5-81 glibc-headers.i386 0:2.5-81 libaio-devel.i386 0:0.3.106-5 libstdc++-devel.i386 0:4.1.2-52.el5
sysstat.i386 0:7.0.2-11.el5 unixODBC.i386 0:2.2.11-10.el5 unixODBC-devel.i386 0:2.2.11-10.el5
Dependency Installed:
kernel-headers.i386 0:2.6.18-308.el5 unixODBC-libs.i386 0:2.2.11-10.el5
Complete!
4. Copy and paste client 11gR2 software in Linux Machine and Unzip that software.

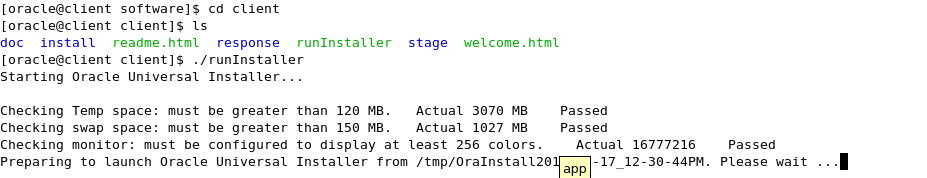

5. start ./runinstallar

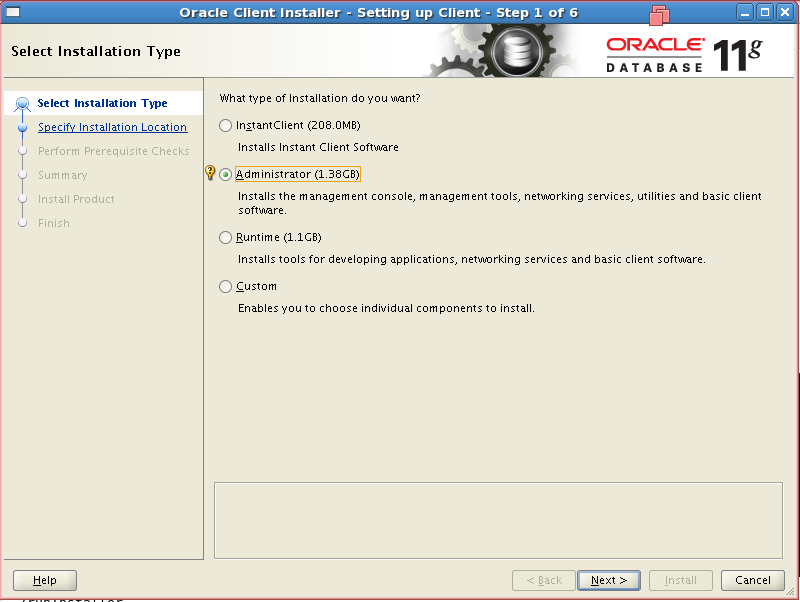

5. Click on Adminstor redio button

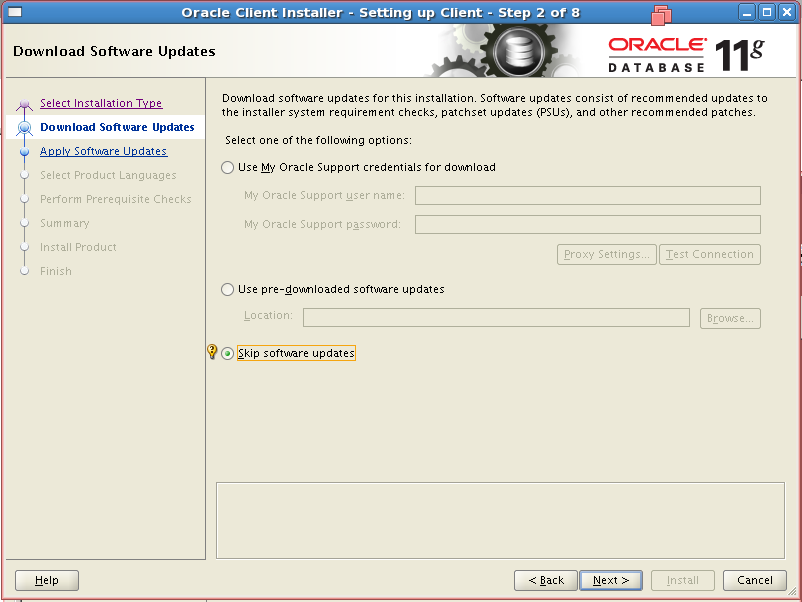

6.> Click on SKIP SOFTWARE UPDATE redio button

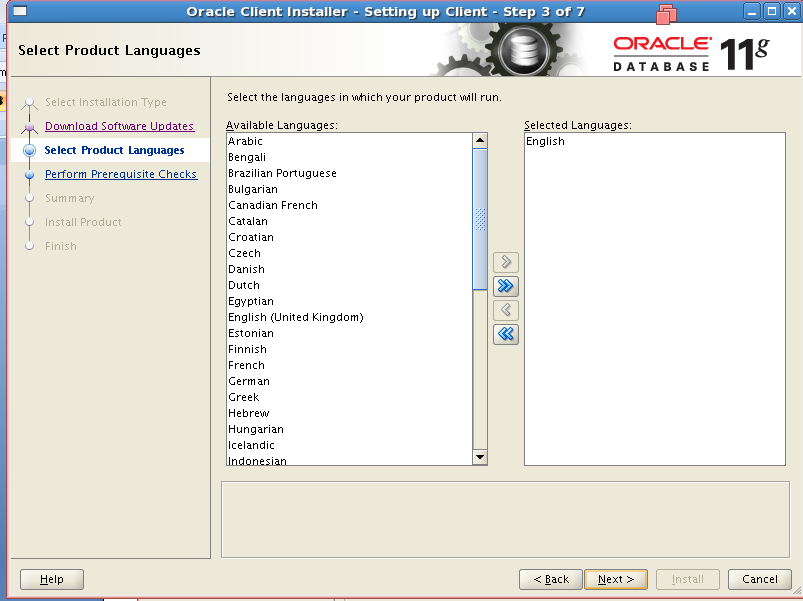

7. Select the language and click on next button
8.> check the location and path of oracle base and oracle home and click on next button

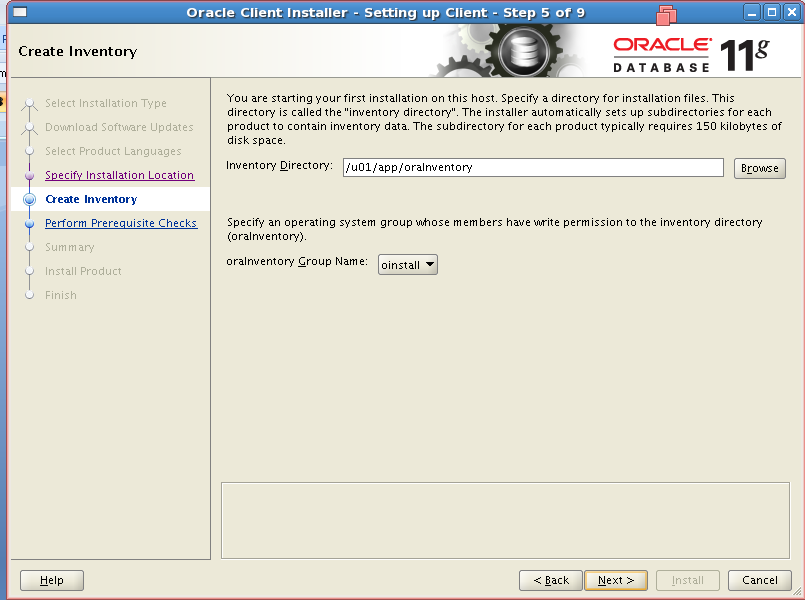

9. check the Inventory location
10. we can ignore the SWAP size if there is not much difference between expected value and actual value then next button
10.> click on install button

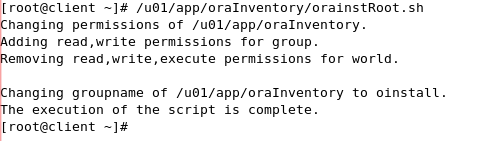

12. run root.sh script.
[root@client ~]# /u01/app/oracle/product/11.2.0/client_1/root.sh
Performing root user operation for Oracle 11g
The following environment variables are set as:
ORACLE_OWNER= oracle
ORACLE_HOME= /u01/app/oracle/product/11.2.0/client_1
Enter the full pathname of the local bin directory: [/usr/local/bin]:
Copying dbhome to /usr/local/bin ...
Copying oraenv to /usr/local/bin ...
Copying coraenv to /usr/local/bin ...
Creating /etc/oratab file...
Entries will be added to the /etc/oratab file as needed by
Database Configuration Assistant when a database is created
Finished running generic part of root script.
Now product-specific root actions will be performed.
13. Installation of client completed. click on close button.
14. Configure SCAN LISTENER NAME in TNSNAMES.ora file
[oracle@client admin]$ cat tnsnames.ora
orcl =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = rac-scan.example.com)(PORT = 1521))
(CONNECT_DATA =
(SERVER = DEDICATED)
(SERVICE_NAME = orcl)
)
)
